SiteSentinel® iSite™ Console

Provides complete tank monitoring, inventory management and environmental compliance through the incorporation of the latest Windows® –based technology, which allows users to view data remotely from anywhere in the world.

The SiteSentinel® iSite™ has been designed to lower installation costs by reducing the number of wires to the probes, sensors and leak-detection devices that are connected to its VSmart Module. In addition, all devices are automatically detected and configured by using the touch-screen interface, making it one of the easiest ATG systems in the industry to install, configure and use.

The SiteSentinel® iSite™ console has been designed to reliably provide connectivity now and in the future. Available ports include: Ethernet, USB and Serial (RS-232, RS-485), and modem communication ports. It is also one of the easiest tank gauges to use, requiring the least amount of training and menu navigation to access critical data.


SiteSentinel® iSite™ has been validated as ready for use with SV (Supervisor View), ForeSite™ IC (Inventory Control) , Fuel Center® and Alarm Management Services.

Request SiteSentinel® iSite™ training through OPW University

Features & Benefits

SiteSentinel® iSite™ Features

  • Large color touchscreen display gives one-touch access to real-time inventory data, delivery status, alarm conditions, and leak-detection information – all of which are accessible from a single cockpit view
  • Statistical Leak Detection (SLD) - optional advanced leak-testing technology - provides continuous automatic in-tank leak-detection operation, with no need to schedule test times or shut down tanks
  • Programmable Automatic Leak Detection (ALD) performs daily, weekly, monthly and annually required static leak tests when the system detects a quiet time
  • Provides real-time, accurate inventory information
  • Internal power supply works between 120/240 VAC ± 10%, covering all global requirements
  • Displays gross and net-corrected tank volume, product level, water level and temperature for individual tanks
  • International user-friendly icons follow guidelines in MIL STD - 1472
  • Configurable to meet localized settings (Date/Time formats and Metric/English units)
  • Downloadable and Flash upgradable software for easy updates
  • Communicates with industry-standard, third-party POS protocol and display format commands
  • Provides programmable correction factors for restrapping tanks (2,000 points)
  • Available output module provides multi-purpose relays, which can be used for outputs such as overfill alarms, sensor alarms or STP positive shutdown
  • Optional density measurement sensor has the capability to monitor product quality
  • Includes address book of contacts to whom the unit can send text messages, fax and/or emails on any alarms and events
  • Able to schedule reports to automatically run at specific times
  • Non-volatile memory for event storage up to ten years
  • Compliance calendar accessible with a single touch
  • Monitors up to 256 probes, 1024 sensors and/or 16 VLLD sensors

Leak Test Certification

EPA Static Leak and Continuous Test Certified (ATGS & CITLDS Methods):
  • 0.2 gph (0.76 L/hr) Statistical Leak Test
    Note: 397,000 gallons (1,502,809 liters)/month throughput for single-tank, 2-tank or 3-tank manifold installations; 30,000-gallon (113,562-liter) combined maximum capacity
  • 0.2 gph (0.76 L/hr) Static Leak Test
  • 0.1 gph (0.38 L/hr) Static Leak Test
  • 3.0 gph (11.4 L/hr) Catastrophic Line Leak Test
  • 0.2 gph (0.76 L/hr) Precision Line Leak Test
  • 0.1 gph (0.38 L/hr) Precision Line Leak Test

Certifications

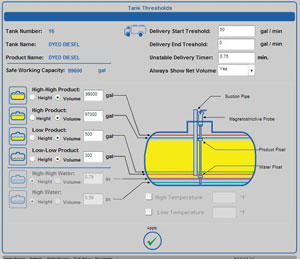

Tank Threshold Screen

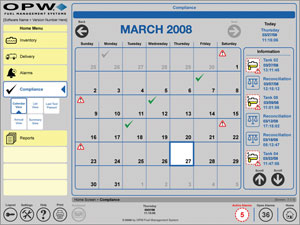

Compliance Calendar
