OPW 6211-RMOT Remote-Fill Aboveground Storage Tank Spill Containers

OPW Remote-Fill AST Spill Containers are designed to prevent spilled product from entering soil near the remote, horizontal-fill and vapor return connections on an above ground storage tank during normal tank filling operation. The spill containers catch spillage to help prevent soil contamination and groundwater pollution. OPW Remote-Fill AST Spill Containers slip on the remote-fill and vapor return piping connected to an above ground tank. Compatible with methanol, ethanol, jet and AV-Gas fuels.

Features

Easy Installation – A 4" flexible boot on the back panel allows for a quick, simple connection to the remote fill or vapor lines. Optional reducer inserts are available to accommodate 3" and 2" piping connections.
Models to Accommodate Various Fill Pipe Configurations – Available in 15, 20 and 30-gallon container capacity. Smaller 15-gallon models are designed for a single-fill or vapor return connection. Larger 20 and 30-gallon models accept both fill and vapor return piping in a dual-port configuration. The 30-gallon model will accommodate both fill and vapor return piping in a single-port configuration and allow the use of 3" Dry Disconnects (OPW 1611AN and 1711D) in a dual-port configuration.
Rain-Shedding Cover Design – Hooded cover design helps prevent water or snow entry by extending the lip of the cover over the body of the spill container.
12-Gauge Epoxy-Powder Coated Steel or Stainless Steel Construction – Heavy-duty materials, compatible with hydrocarbons, for long service life and added security.
Welded-Hinge, Lockable Hatch – The cover includes a provision for a padlock and a welded-hinge assembly for added security.
Easy Product Drainage – A lockable ball valve drain provides for quick and easy product removal.
Height Adjustable – Adjustable legs enable the spill container to be set at a variety of heights, from 16-1/2" to 30". Each leg is independently adjustable to account for uneven ground conditions.
Custom Sizes Available Upon Request.

Ordering Specifications

Ordering Chart

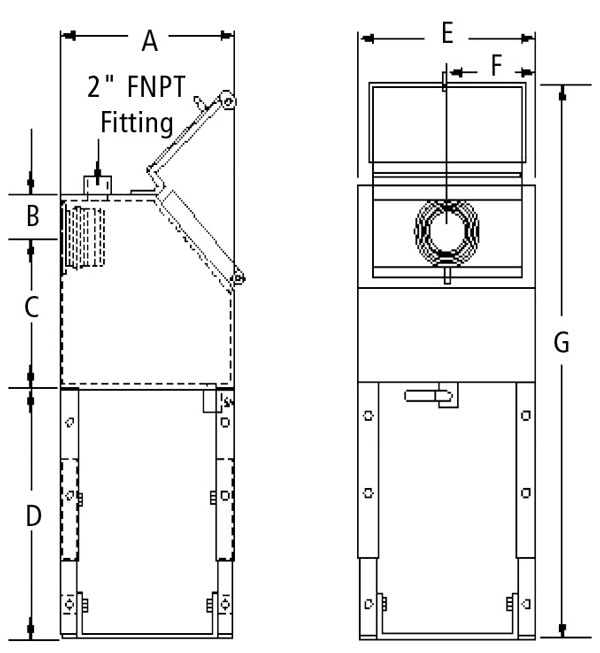

Dimensions

Replacement Parts

Downloads

Installation Instructions

211R Remote Spill Container Instructions - H15857PA
