FlexWorks Polyethylene Dispenser Pans

FlexWorks™ Dispenser Pans are installed beneath fuel dispensers to provide secondary containment of dispenser plumbing and emergency shear valves. Dispenser pans are commonly used with rigid to retrofit existing dispensers.

Ordering Specifications - FlexWorks Polyethylene Dispenser Pans

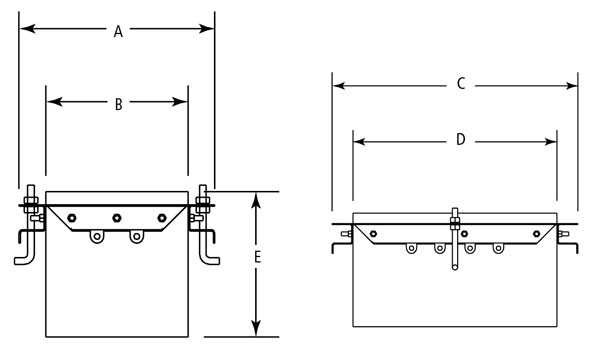

Dimensions

FlexWorks Dispenser Sump Selection Guide

Gilbarco

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Gilbarco	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Commercial 625, 650, 684 Series (21" / 53 cm Frame)	15-11/16" x 21"	40 x 53	DS-1117F	DSW-1117F	DP-1117F		DSF-1117F	SBK-1100J
Salesmaker-2 Series (21" / 53 cm Frame)	15-11/16" x 21"	40 x 53	DS-1117F	DSW-1117F	DP-1117F		DSF-1117F	SBK-1100J
Highline 11B Series (21" / 53 cm Frame)	15-11/16" x 21"	40 x 53	DS-1117F	DSW-1117F			DSF-1117F	SBK-1100J
Highline 111B Series (27" / 69 cm Frame)	15-11/16" x 27"	40 x 53	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Trimline 251, 252, 261, 262 (27" / 69 cm Frame)	15-11/16" x 27"	40 x 69	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Trimline 154, 164, 251, 262 (27" / 69 cm Frame)	15-11/16" x 21"	40 x 69	DS-1117F	DSW-1117F			DSF-1117F	SBK-1100J
Commercial 650 Series (27" / 69 cm Frame)	15-11/16" x 27"	40 x 69	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Highline Salesmaker Series	15-11/16" x 21"	40 x 69	DS-1117F	DSW-1117F	DP-1117F		DSF-1117F	SBK-1100J
Highline Salesmaker Series (27" / 69 cm Frame)	15-11/16" x 27"	40 x 69	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Salesmaker-4 Series (27" / 69 cm Frame)	15-11/16" x 27"	40 x 69	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Legacy Series	15-11/16" x 27"	40 x 69	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Encore Series	23-1/2" x 40-9/16"	60 x 103	DS-1836	DSW-1836 DSW-1836CL	DP-1836	FDS-4021	DSF-1836 DSF-1836C	SBK-1800*
Advantage (36" / 91 cm Frame Models)	21-1/2" x 36"	55 x 91	DS-1630	DSW-1630	DP-1630		DSF-1630	SBK-1600
Quad or Dual
Blender X + O (36" / 91 cm)
Advantage (48" / 122 cm Frame Models)	21-1/2" x 48"	55 x 122	DS-1642	DSW-1642			DSF-1642	SBK-1600*
Blender Six-Hose
Blender Single-Hose
Blender X + O (48" / 122 cm) or X + 1 (48" / 122 cm)
MPD-1, MPD-2, MPD-3	16" x 48"	41 x 122	DS-1036					SBK-1000J
MPD Fixed Blender	16" x 48"	41 x 122	DS-1036					SBK-1000J

* For FDS-4721 Models, use Stabilizer Bar SBO-0300.

Bennett

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Bennett	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Bennett Pacific	19-1/2" x 43-1/2"	49 x 110	DS-1543A					SBK-1500
Bennett 3000 Series	20" x 30"	51 x 76	DS-1123B					SBK-1100J

PD McLaren

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
PD McLaren	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
RDR HSx (Single Product, Single Hose)	21" x 17.75"	53 x 45		DSW-1922	DSF-1922			SBK-1900
RDR HSx-D1 (Single Product, Dual Hose)	21" x 17.75"	53 x 45		DSW-1922	DSF-1922			SBK-1900
RDR HSx-D2 (Dual Product, Dual Hose)	21" x 17.75"	53 x 45		DSW-1922	DSF-1922			SBK-1900
RDR HSx-SAT (Master Unit and Satellites)	21" x 17.75"	53 x 45		DSW-1922	DSF-1922			SBK-1900
RDR HSx-X2 (Single Product, Dual Hose, One at a Time)	21" x 17.75"	53 x 45		DSW-1922	DSF-1922			SBK-1900

Gasboy

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Gasboy	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
0215A, 216A (197/8" Frame / 50.5 mm)	17-1/4" x 19-7/8"	49 x 50.5	DS-1117F	DSW-1117F	DP-1117F		DSF-1117F	SBK-1100J
52 and 53 Series	17" x 19-7/8"	44 x 50.5	DS-1117F	DSW-1117F	DP-1117F		DSF-1117F	SBK-1100J
8700, 8800, 9100, 9800 Series	17-1/4" x 25"	44 x 63.5	DS-1120					SBK-1100J
25" Frame 63.5 mm	17-1/4" x 25"	44 x 63.5
8700, 8800, 9100, 9800 Series (28-1⁄4" Frame / 72 mm)	17-1/4" x 28"	44 x 71	DS-1123	DSW-1123	DP-1123		DSF-1123F	SBK-1100J
9850A	15-11/16" x 21"	40 x 69	DS-1120	DSW-1120			DSF-1120	SBK-1100J

* Stabilizer bar is installed widthwise in dispenser sump

Dresser/Wayne

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Dresser / Wayne	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
350, 357, 358, 360, 370 Series	15" x 25-7⁄8"	30 x 66	DS-1123F	DSW-1123F	DP-1123F		DSF-1123F	SBK-1100J
Vista 380 Series (387, 389)	20" x 35"	51 x 89	DS-1229	DSW-1229			DSF-1229	SBK-1200J
Vista 590 Series (590, 595)	20" x 48"	51 x 122	DS-1242	DSW-1242			DSF-1242	SBK-1200J
Vista 390 Series (395, 399)	20" x 48"	51 x 122	DS-1242	DSW-1242			DSF-1242	SBK-1200J
Vista 490 Series	20" x 48"	51 x 122	DS-1242	DSW-1242			DSF-1242	SBK-1200J
DL390, 395, 399 Series	20" x 48"	51 x 122	DS-1242	DSW-1242			DSF-1242	SBK-1200J
HS1 Satellite / 287 Series	20" x 35"	51 x 89	DS-1229	DSW-1229			DSF-1229	SBK-1200J
Ovation	19-1⁄2" x 43-1⁄2"	50 x 110	DS-1543A**	DSW-1543 DSW-1543C		FDS-4319*	DSF-1543 DSF-1543C	SBK-1500
Select	19-3⁄8" x 32-5⁄16"	49 x 82	DS-1928					SBK-1500A
Global Century	19-3⁄8" x 32-5⁄16"	49 x 82	DS-1928					SBK-1500A
Reliance	19-3⁄8" x 32-5⁄16"	49 x 82	DS-1928					SBK-1500A
HS4 / HS3 / Vista	19-3⁄8" x 32-5⁄16"	49 x 82	DS-1630	DSW-1630***	DP-1630		DSF-1630***	SBK-1600
Narrow Frame Helix (2000, 4000)	20" x 33"	51 x 84	DS-1630					SBK-1600
Wide Frame Helix (5000)	26" x 44"	51 x 112	DS-1741					SBK-1700

* For FDS-4319 Model use Stabilizer Bar SBO-0250
** For DS-1543A Model use Stabilizer Bar SBK-1500A; for DSF/DSW-1543 Models use Stabilizer Bar SBK-1500
*** For DS-1928 Model use Stabilizer Bar SBK-1500A; for DSF/DSW-1630 Models use Stabilizer Bar SBK-1600

Tokheim

Dispenser Manufacturer & Model	Dispenser Footprint Dimensions		FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
Tokheim	in.	cm	FlexWorks One-Piece Polyethylene Sump	FlexWorks Wide-Access Polyethylene Sump	FlexWorks One-Piece Polyethylene Pan	FlexWorks One-Piece Fiberglass Sump	FlexWorks Wide-Access Fiberglass Sump	Stabilizer Bar Kit
1200, 1248, 1250 Series	17-1/4" x 25"	44 x 64	DS-1120	DSW-1120			DSF-1120	SBK-1100J
330B, 333B Series	17-1/4" x 44"	44 x 112	DS-1642	DSW-1642			DSF-1642	SBK-1600
