OPW 100 Counterweight Hose Retractors

OPW 100 Counterweight Hose Retractors keep excess hose off the ground and out of the way, prolonging hose life and reducing potential hazards. The OPW 100 is a California Air Resources Board (CARB) certified Stage II component for use with single and dual hose dispensers as per Executive Order G-70-52-AM.

Pomeco 100 Counterweight Hose Retractors

Features & Benefits

Features

Easy to Use - Counterweights are precisely matched to each hose configuration to ensure that a minimal pulling force is needed throughout hose extension.
Easy to Maintain - The 100 has just two moving parts, ensuring a long service life with a minimum of maintenance.
Multiple Hose Configurations - The 100 is available in a multitude of configurations to meet virtually any conventional or vapor recovery hose/nozzle configuration. Models are also available for air and water hose applications to keep hoses clear of vehicles when not in use.

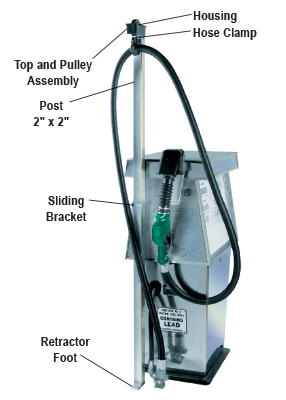

Materials

Housing: Impact-resistant plastic
Cable: Black polyester
Post: Aluminum (2"x 2")

Ordering Specifications

Conventional and Vapor Recovery Applications

Model Number*	Hose Configuration	Clamp Fits						Height		Weight
		Hose Length		Hose O.D		Hose I.D.		Height		Weight
		ft.	meters	in.	mm	in.	mm	in.	cm	lbs.	kg
6100-4000	Conventional	12-14	3.7-4.3	1-3/8	35	1	25	79	201	33	15.0
6100-5000	Conventional	15-18	4.6-5.5	1-3/8	35	1	25	92	234	38	17.2
6100-6000	Conventional	12-14	3.7-4.3	1-1/32	26	5/8 or 3/4	16 or 19	79	201	30	13.6
6100-7000	Conventional	15-20	4.6-6.1	1-1/32	26	5/8 or 3/4	16 or 19	92	234	31	14.1
6100-8000	Conventional	12-14	3.7-4.3	1	25	5/8	16	79	201	29	13.2
6100-9000	Conventional	15-20	4.6-6.1	1	25	5/8	16	92	234	30	13.6
6100-AGNV	Inverted Coaxial	11-13	3.4-4.0	(Hose Clamp Not Included)				79	201	33	15.0
6100-AGLC	Coaxial	11-13	3.4-4.0	(Hose Clamp Not Included)				79	201	26	11.8
6100-AGBR	Coaxial w/Breakaway	11-13	3.4-4.0	(Hose Clamp Not Included)				79	201	31	14.1

100 Series Counterweight Hose Retractor Instruction Sheet Order Number: H15852PA

Hose Clamp

Hose Clamps

Model Number	Hose Size/Type*
PB-1396	Standard 1-3/8" O.D. Hose (1" I.D.)
PB-1394	Standard 1-1/8" O.D. Hose (3/4" I.D.)
PB-1375	Standard 1-1/32" O.D.Hose (5/8" or 3/4" I.D.)
PB-1373	Standard 1" O.D. Hose (5/8" I.D.)
PB-1344	Balanced Coaxial, Goodyear Premier

*Other sizes are available on request.

Air/Water Hose Applications

Model Number	Description	S Hose Length		Length		Weight
Model Number	Description	ft	meters	in.	mm	lbs.	kg
6100-DAWO	Air/Water Hose Retractor (complete with dual hose)	18.5	5.6	124	315	26	11.8
6100-DAOO	Air Hose Retractor (complete with air hose)	18.5	5.6	124	315	23	10.4
6100-DANC	Air Hose Retractor (with hose clamp only)			124	315	20	9.1
6100-DANH	Air Hose Retractor (no hose or clamp)			124	315	20	9.1

Replacement Parts

Options and Replacement Parts

Part #	Description	Counterweight Length		Weight
Part #	Description	in.	cm	lbs.	kg
H15262	Counterweight for 4000/AGNV Models	27	68.5	24	10.8
H15263	Counterweight for 5000 Model	31	78.7	27	12.2
H15260	Counterweight for 6000, 8000 and AGLC Models	20	50.8	17	7.7
H15261	Counterweight for 7000, 9000, AGBR Models	25	63.5	22	9.9
H15265M	Sliding Bracket, Dispenser Mount
C05235M	Replacement Tube, 2" x 2" x 75" (191 cm)
C05236M	Replacement Tube, 2" x 2" x 88" (224 cm)
D02671M	Replacement Housing, Plastic
H15266	Top and Pulley Assembly
H15264	12 ft. Replacement Cable
C05239M	Retractor Foot
P100-4STF	Freestanding Retractor Base
P338SPOOL	Replacement Cable Spool, 338 ft. of wire
H15210M	Cable Guide
H13588M	Retaining Ring
